Browns Plains Roof Inspection Purpose:
Provide a roof condition report to AS 1562.1 AS 1562.3 And SA HB 39 2015 The Installation Code for Metal Roofing and Walling and Manufacturer’s Instructions. Provide recommendations to extend longevity.

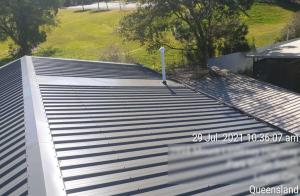

Inspection Site Gallery
Findings & Recommendations Report For Browns Plains Roof Inspection
- Tray flashing has insufficient fasteners. Screw lines must continue through tray flashing. This is non-compliant to SA HB 39 7.2 below.

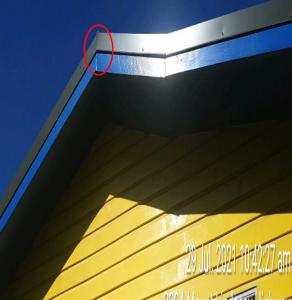

- No screws have been installed in the join of the barge cap edge. This is noncompliant to AS 1562.1 4.2 below.
- There is a missing screw shown in images, remedy is required
- It has been noted that the screw in the box has not been tightened correctly. Ingress risk is low.
Installation Codes Referenced:
7.2 Roof Sheet Span Information
The roof sheet support spacing for the various profiles are listed in the typical span information of the manufacturer’s product literature. This information varies depending on whether it is an end span, internal span or overhang.
The typical span charts are based on the ability of sheeting to withstand the wind loads specified in AS/NZS 1562.1 and the NCC. All sheeting is to be fixed to each and every roof support unless otherwise approved by a structural engineer
4.2 Fastener Spacing For Flashing And Cappings
Flashing Type: Flashing edge to material other than metal cladding (e.g barge flushing edge fixed to concrete wall)
Faster Spacing:
Non-cyclonic wine regions: At the same or less spacing as the fastener spacing on the other flashing surface
Cyclonic wind regions:
At not more than 500mm centres.
