Minimum Roof Pitch Requirements in Australian Roofing

Minimum roof pitch requirements in Australian roofing are not defined by a single national number. The allowable pitch depends on the roofing material, installation method, drainage design, wind classification, and the manufacturer’s technical specifications. While many assume there is one minimum degree that applies to all roofs, compliance is determined through a combination of standards and product-specific requirements.

In Australia, the National Construction Code sets performance expectations for weatherproofing and structural adequacy, while installation standards such as AS 1562.1 for metal roofing and AS 1562.3 for tiled roofing guide how those systems must be installed. Manufacturer technical manuals then specify the minimum pitch permitted for each roof profile under defined conditions. When any one of these elements is overlooked, a roof may appear acceptable yet fall short of compliance or long-term performance expectations.

The Role of the National Construction Code

The National Construction Code establishes the performance requirements that roofs must satisfy, including structural stability and resistance to water penetration. Rather than prescribing a single minimum roof pitch, the Code requires that roofing systems be installed in accordance with relevant Australian Standards or other approved compliance pathways. This means pitch selection must support both weatherproofing performance and structural adequacy under expected wind and environmental conditions.

For residential buildings, compliance typically references installation standards such as AS 1562.1 for metal roofing and AS 1562.3 for tiled roofing. These standards do not operate in isolation; they rely on manufacturer specifications that define the minimum allowable pitch for each product and profile. As a result, roof pitch compliance is determined by a combination of Code performance requirements, referenced standards, and documented product limitations rather than a single universal measurement.

AS 1562 and Installation Standards

Australian Standard AS 1562.1 governs the installation of metal roof and wall cladding, while AS 1562.3 covers the installation of concrete and terracotta roof tiles. These standards outline fixing methods, support spacing, lap requirements, and detailing practices that ensure roofing systems perform under wind and weather exposure. They form a critical part of the compliance pathway referenced by the National Construction Code.

Importantly, these standards do not assign a single minimum roof pitch across all systems. Instead, they require that installation align with the manufacturer’s technical data for the specific roofing profile being used. Minimum pitch therefore becomes product-specific rather than standard-specific. Compliance depends on whether the roof has been installed within the parameters published for that particular sheet profile, tile system, or cladding type.

Why Minimum Roof Pitch Varies by Roofing Material

Minimum roof pitch varies because each roofing system handles water, wind, and structural movement differently. Profile depth, overlap design, fixing method, and drainage pathways all influence how steep the roof must be to shed water effectively. As a result, pitch requirements are determined by product design and installation conditions rather than by a single national rule.

Corrugated metal profiles that rely on rib height and overlap to control water flow.

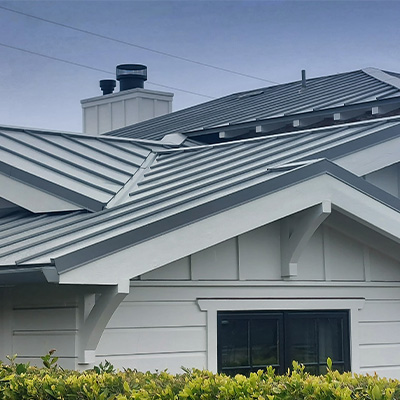

Concealed fix systems where clip design and sheet geometry influence drainage capacity.

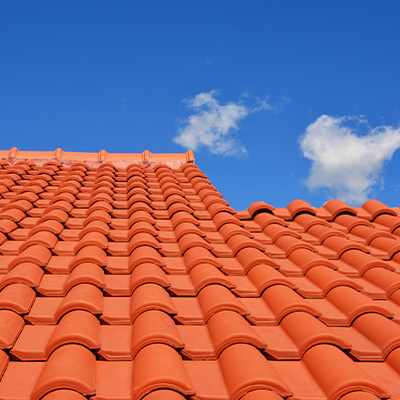

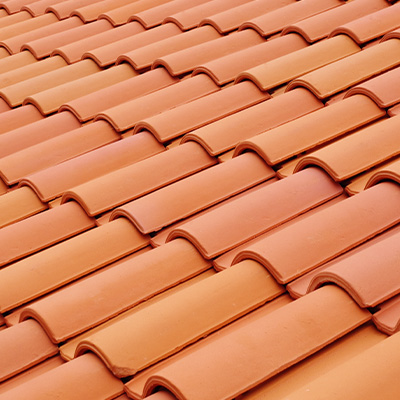

Concrete and terracotta tiles that depend on headlap and side interlock performance.
Membrane systems designed for low-slope applications with different waterproofing mechanisms.
End-lapped sheet systems where lap length and sealing affect minimum slope allowances.
Interfaces with box gutters or parapets that require additional fall to manage concentrated water flow.

Each system is engineered with specific tolerances for runoff and capillary resistance. Installing a roof below its published minimum pitch can increase the likelihood of water tracking, ponding, or accelerated deterioration, even if the roof initially appears watertight.

Drainage and End Lap Considerations

Drainage performance plays a direct role in determining minimum roof pitch. Steeper roofs encourage faster runoff and reduce the time water remains in contact with laps, fixings, and surface coatings. Shallower slopes slow drainage and increase reliance on lap geometry and sealing details to prevent water entry. For this reason, the same roofing profile may have different pitch allowances depending on how it is detailed and drained.

End laps introduce additional complexity. Where sheets are lapped along their length, water must pass across the overlap without being drawn upward through capillary action. Manufacturers typically specify minimum lap lengths and may require sealants or specific detailing methods when pitches approach lower limits. If a roof is installed near the minimum allowable slope without meeting these detailing requirements, water tracking and moisture retention become more likely, particularly during heavy rainfall or wind-driven storms.

Wind Region and Exposure Classification

Wind classification is another factor influencing minimum roof pitch decisions. Under Australian building requirements, structures are designed according to wind regions and exposure categories, which reflect expected wind speeds and terrain conditions. Higher wind regions and more exposed sites subject roofing systems to greater uplift forces and pressure changes.

As wind pressure increases, fixing patterns, support spacing, and sheet stability become more critical. While minimum pitch is primarily related to drainage, wind exposure can affect how securely roofing materials must be installed at lower slopes. In areas subject to stronger winds or cyclonic conditions, installation requirements may become more stringent to ensure the roof performs as a complete system. Pitch selection must therefore be considered alongside wind classification rather than in isolation.

Common Compliance Problems

Roof pitch compliance issues often arise not from design intent but from installation shortcuts or later modifications. A roof may be built close to its minimum allowable slope without fully meeting the detailing conditions required at that pitch. Over time, these decisions can contribute to drainage inefficiency and performance concerns.

Installation below the manufacturer’s published minimum pitch.
Reduced end lap lengths compared to product specifications.
Reliance on sealant alone rather than compliant lap geometry.
Renovations that alter roof fall without reassessing pitch limits.
Tie-ins between different roof planes creating low-point transitions.
Box gutters installed with insufficient fall relative to surrounding slopes.

These issues may not be visible from ground level, yet they can influence long-term weather resistance. Verifying that pitch and detailing align with manufacturer documentation is central to confirming compliance.

Compliance, Performance and Insurance Considerations

Correct roof pitch is closely linked to overall weatherproofing performance. When a roof is installed below the manufacturer’s documented minimum slope, drainage behaviour changes and water exposure at laps and fixings increases. Even if leakage is not immediately visible, long-term performance can be affected through moisture retention and accelerated wear.

Compliance also becomes relevant when insurance or certification questions arise. Insurers may consider whether roofing systems were installed in accordance with applicable standards and product requirements, particularly after storm damage claims. Where pitch does not align with documented specifications, repair responsibility and claim outcomes can become more complex. Clear documentation of roof configuration and installation parameters provides greater certainty when performance or compliance is later assessed.

Verifying Roof Pitch Compliance Before Problems Develop

Verifying that a roof meets minimum pitch requirements is far easier before water entry or visible deterioration occurs. Reviewing manufacturer specifications, confirming lap detailing, and assessing drainage behaviour helps identify whether the roof has been installed within compliant limits. This is particularly important on low-slope roofs, renovations, or properties where previous modifications may have altered the original fall.

At Roof Inspection Reports, we assess roof pitch configuration in the context of product specifications and installation standards as part of a roof condition report. Call 0418 677 524 or contact us online to arrange an assessment and confirm that your roofing system aligns with documented minimum pitch requirements.

FAQ: Minimum Roof Pitch Requirements in Australian Roofing

No. Minimum roof pitch depends on the roofing material, profile design, installation method, and the manufacturer’s published specifications

The Code sets performance requirements but generally relies on referenced standards and manufacturer documentation rather than prescribing one universal pitch.

Sheet geometry, rib height, lap design, and fixing methods influence how effectively water drains, which affects the minimum allowable slope.

Installing below the documented minimum can increase the risk of water tracking, ponding, and non-compliance, even if leaks are not immediately visible.

Yes. End laps require sufficient slope and correct detailing to prevent capillary action and moisture retention.

Wind classification influences fixing and installation requirements. While pitch relates primarily to drainage, it must be considered alongside wind exposure and structural performance.
